ETP Grade Copper Flat Bars Product Specification
Material Copper
Material Grade ETP Grade
Usage Manufacturing
Shape Square, Octagon, Hexagon, Any Shape
Edge Square, Radius, Full Radius
Width 5 mm to 500 mm
Thickness 3 mm to 100 mm
Minimum Order Quantity 100 Kilogram
Product Description
“DWD” Copper Flats are available in a wide range of finishes as per the specific end application demands. These Copper flats are fabricated using Copper purity of up to 99.9 % in compliance with defined industry standards including IS191 & IS1897.
ETP Grade Copper Flat Bars
Further, our expertise also lie in delivering these with Copper or nickel coating in forged, hot rolled as well as in cold worked finish as per required dimensions. These can also be made available in soft, half-hard and hard conditions in different finishes. The surface treatment of Copper flat bar can be electro-plated with tin or silver.
Benefits:
High Conductivity
Dimensional Accuracy
Longer service life
Crack – free Bends
Applications:
Bus Bars
Transformer Connectors
Earthing Protection in L.T. and H.T. Electrical Panels
Power Transmission equipment
Control Panels
Specifications:
Available Sizes: Width: 5mm to 350mm
Available Thickness: 1mm to 60mm
Available Edge: Square, radius & full radius edge
Available Length: Up to 6400 mm (21”) (Depending on section) with standard overall cutting tolerance of 100 mm
Available Grades :
C108/C120/C1220
We also manufacturing these type of copper flat
Copper Flat C101/C102/C103/B170/B379
ETP Grade Copper Flat C110/B5
DHP Grade Copper Flats and Busbars
Tin Coated Copper Flat
Silver Bearing Copper Flats
Polished Copper Blocks Bars
Polished Copper Blocks Bars, Copper Square Blocks, Copper Welding Rods, Vietnam Copper Bars, Industry Copper Block, Customer Brass Rods, Polished Copper Rods, Welding Copper Bar Rod, brush copper bars and rods, polished bright copper rod , brass round bar China supplier Item Polished Copper Blocks Bars, Copper Square Blocks, Copper Flat Rods, cooper rod/copper bar/brass […]

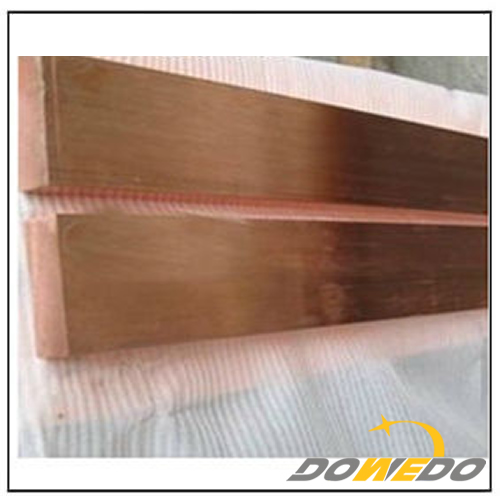

Copper Flat Rods
